Factory direct; Sample free( within 5pcs,you have to take shipping costs); MoQ: 50pcs
Description:

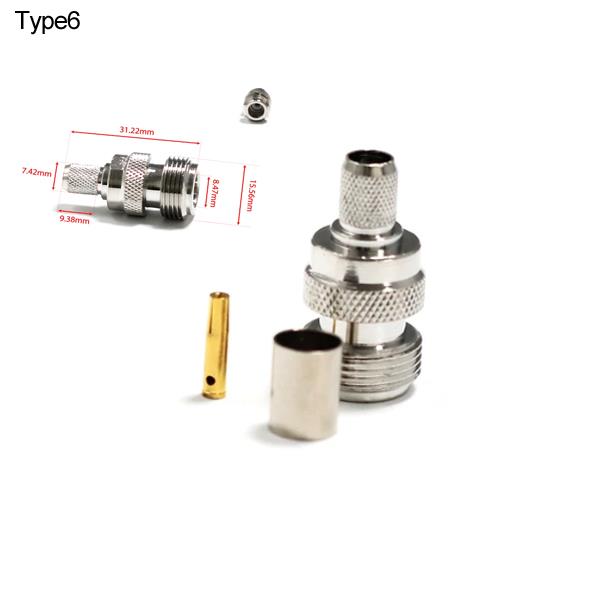

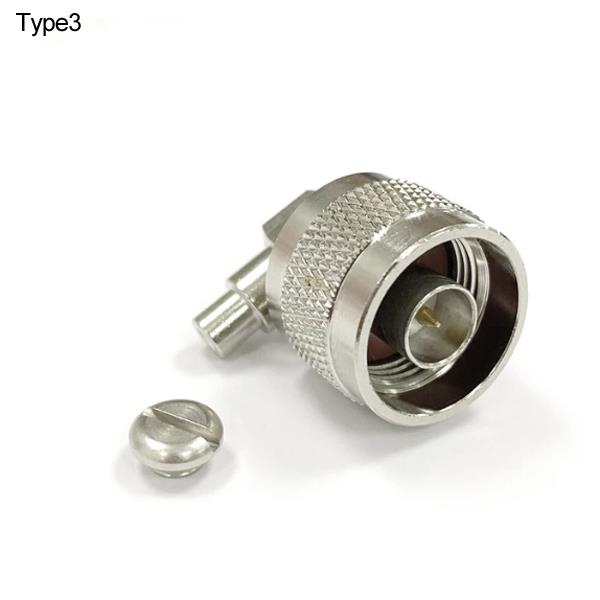

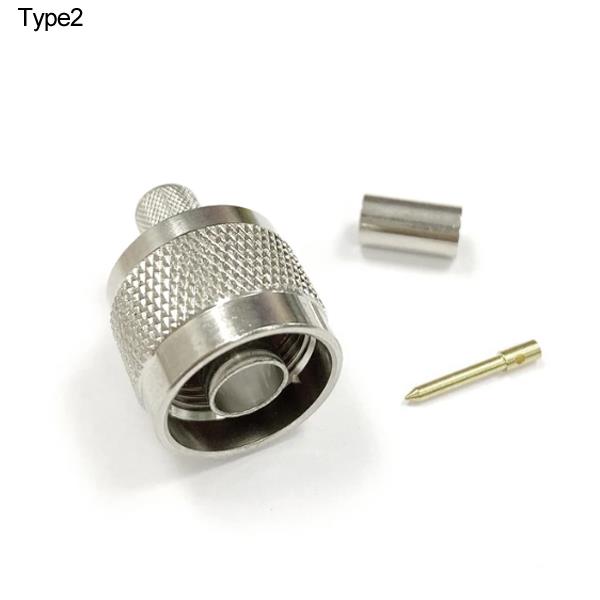

N Type is used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance.
Specificaitons:
Major Technical Characteristics | MATERIAL & PLATING | |||
Temperature Range: | -55~+155°C(PE Cable -40~+85°C) | |||
Impedance: | 50Ω | Body | brass | Nickel plated |
Frequency Range: | DC~4GHz | |||
Working Voltage: | 1000V r.m.s at sea level | Resilient contact | Beryllium-copper | Gold plated |
Withstanding Voltage: | 2500V r.m.s at sea level | |||
Contact resistance: | a)Center Contact ≤1m Ω b
