Description:

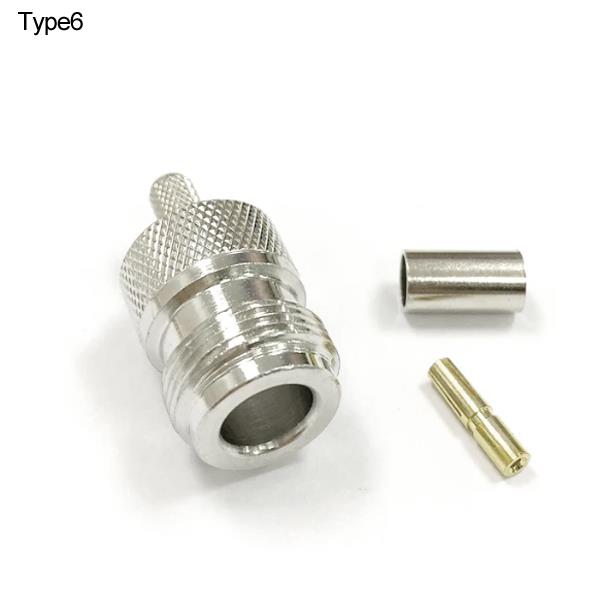

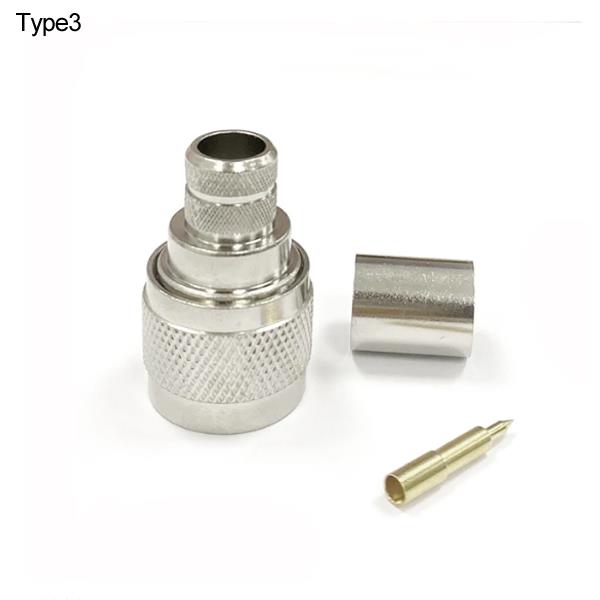

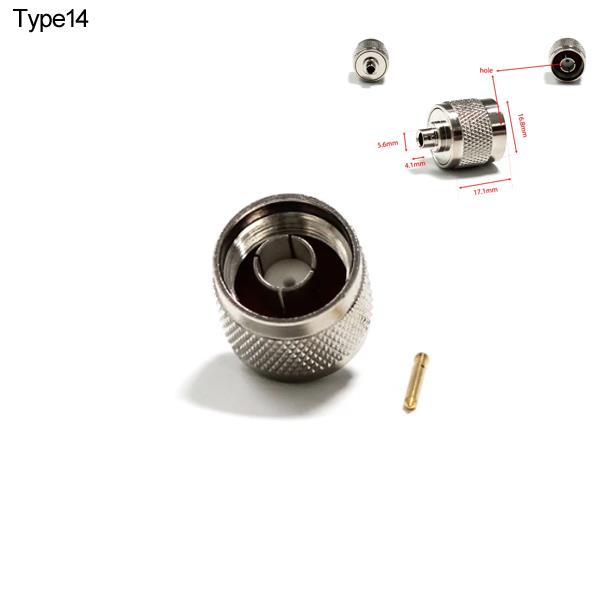

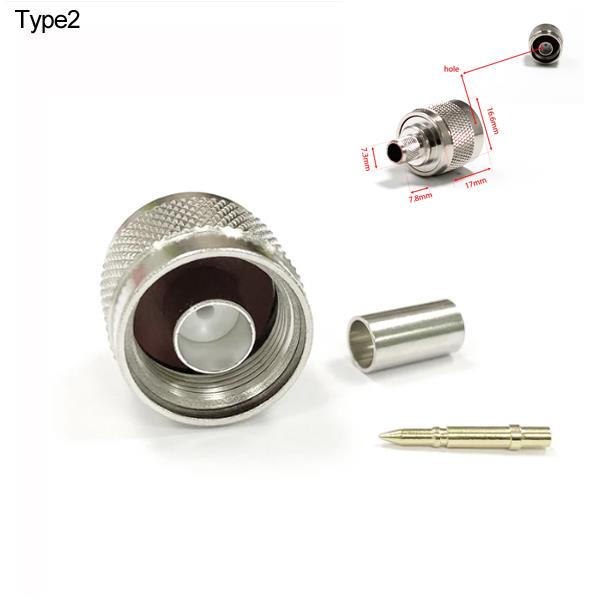

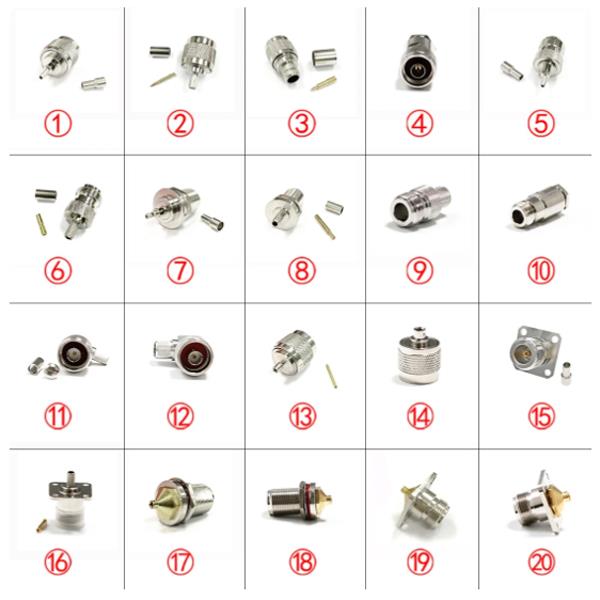

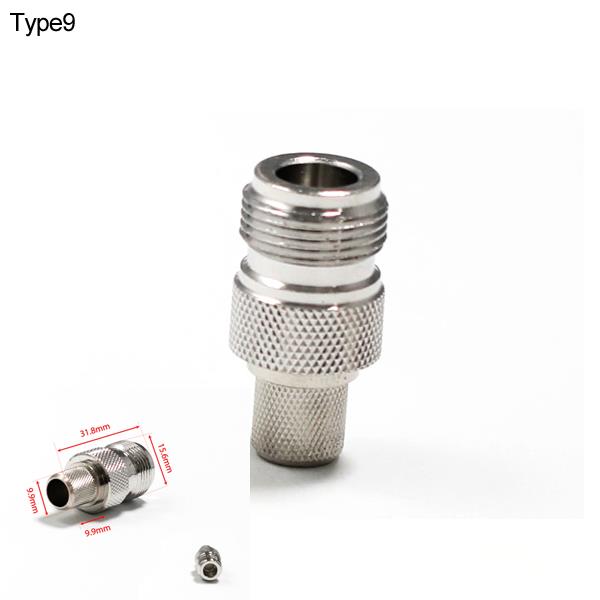

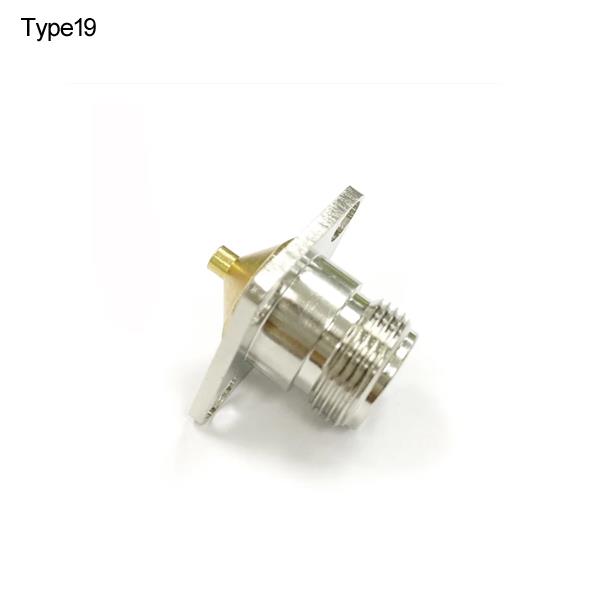

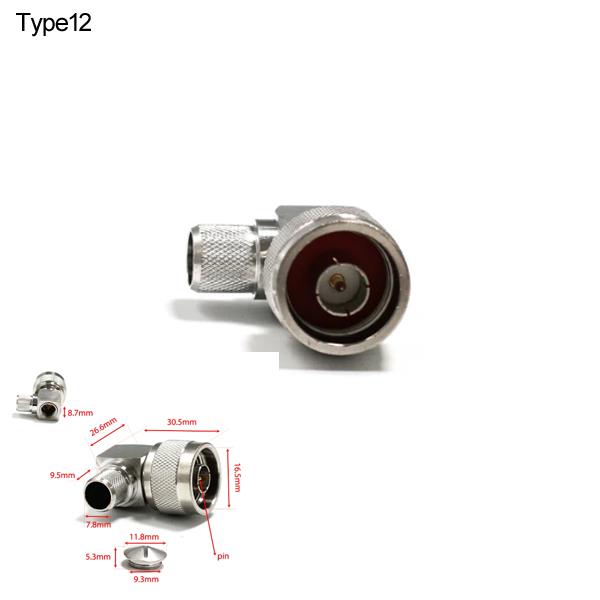

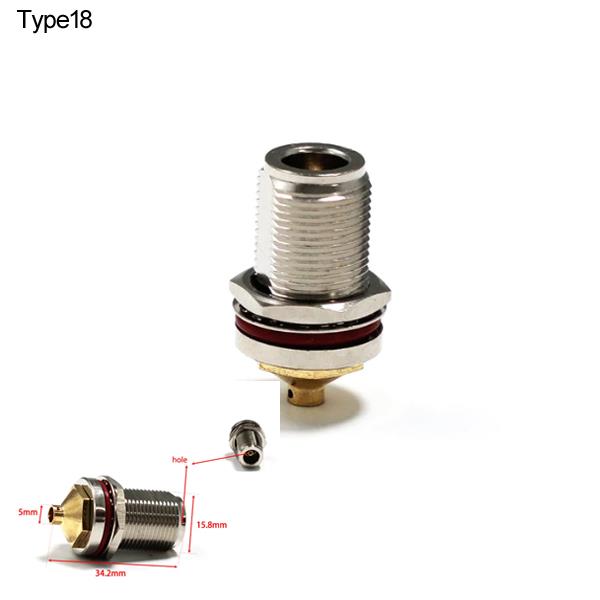

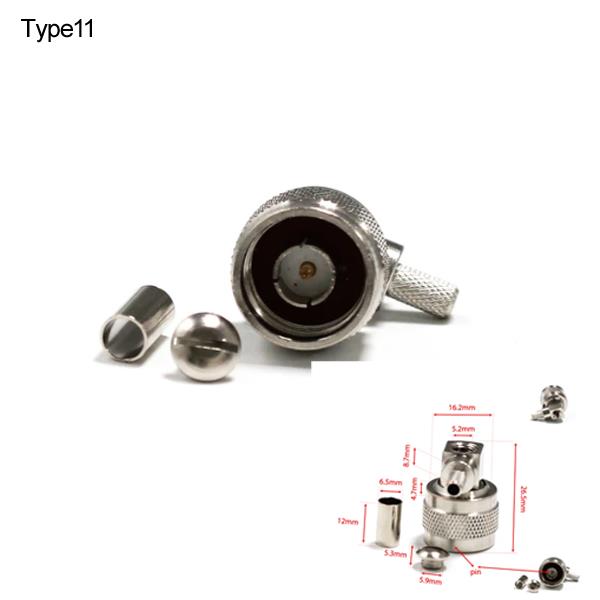

N Type is used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance.
Specificaitons:
Major Technical Characteristics | MATERIAL & PLATING | |||
Temperature Range: | -55~+155°C(PE Cable -40~+85°C) | |||
Impedance: | 50Ω | Body | brass | Nickel plated |
Frequency Range: | DC~4GHz | |||
Working Voltage: | 1000V r.m.s at sea level | Resilient contact | Beryllium-copper | Gold plated |
Withstanding Voltage: | 2500V r.m.s at sea level | |||
Contact resistance: | a)Center Contact ≤1m Ω b)Outer Contact ≤1m Ω | Pin contact | brass | Gold plated |
Insulation resistance: | ≥5000MΩ | Socket contact | Beryllium-copper | Gold plated |
Center Conductor retention force: | ≥0.56N | insulator | PTFE | |
Vibration | 100m/S2(10~500Hz),10g | |||
Coupling nut retention force | 450 N | Crimp ferrule | Copper alloy | Nickel or gold plated |
Disengagement force | 8~63 N | |||
Voltage Standing Wave Ratio: | Straight ≤1.15/ 6GHz Hot Tags: Send Inquiry
| |||
