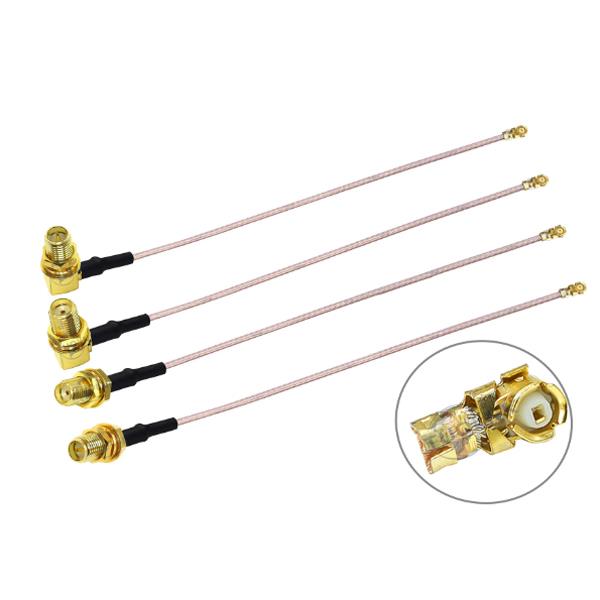

RG178 IPX Cable SMA Female to UFL/U.FL/IPX/IPEX female connector for mini PCI

Application：

This product is widely used in Mini PCI, Router, GPS, Antenna, Mobile phones WLAN, Transmitter, Bluetooth, PDA, Networking and so on.

Specifications of SMA Female to UFL/U.FL/IPX/IPEX Coaxial Cable:

SMA Female/ Female Right Angle/ RP SMA /RP SMA right angle connector

UFL/U.FL/IPX/IPEX connector

Cable Type: RG178 coaxial cable

Cable Length: 5CM/10CM/15CM/30CM or customized

Conductor Material: pure copper

Frequency:  DC-6GHz

Impedance: 50 Ohm

V.S.W.R.: ≤ 1.3

Voltage (breakdown): 500V

Insulation Resistance: ≥ 500 M ohm

Pull Test (Retention): ≥ 27 Kg (270N)

Environmental Operation Temperature: - 40 °C ~ + 65 °C

Storage Temperature: - 40 °C ~ + 80 °C
