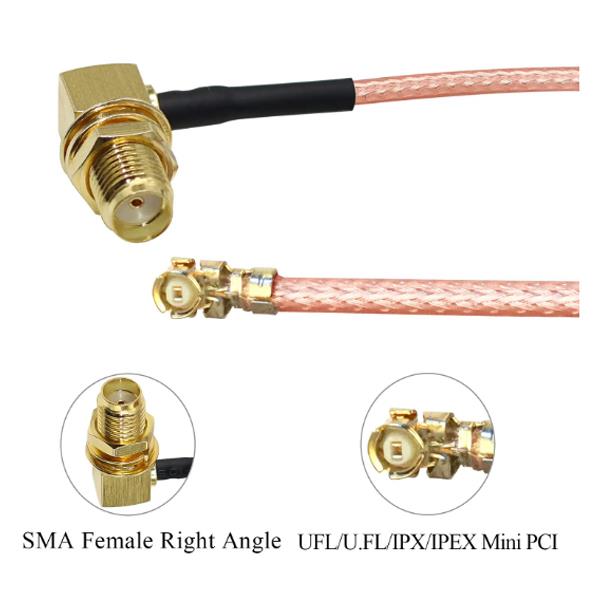

RF Coaxial RG178 Pigtail Cable/SMA Female Right Angle to U.FL UFL IPEX connector for Router Antenna

Application：

This product is widely used in Mini PCI, Router, GPS, Antenna, Mobile phones WLAN, Transmitter, Bluetooth, PDA, Networking and so on.

Specifications of SMA Female right angle to UFL/U.FL/IPX/IPEX extension cable:

SMA Female right angle connector

UFL/U.FL/IPX/IPEX connector

Cable Type: RG178 coaxial cable

Cable Length: Based on your needs.

Conductor Material: pure copper

Frequency: DC-6GHz

Impedance: 50 Ohm

V.S.W.R.: ≤ 1.3

Voltage (breakdown): 500V

Insulation Resistance: ≥ 500 M ohm

Pull Test (Retention): ≥ 27 Kg (270N)

Environmental Operation Temperature: - 40 °C ~ + 65 °C

Storage Temperature: - 40 °C ~ + 80 °C
