UHF Male Female RF Coax Connector for RG316 RG174 RG58 RG142 RG8 LMR400 Cable

Description:

The UHF connector was initially intended for use as a video connector for Radar equipment, but it later became used in a variety of RF applications. The plug may be referred to as a PL259 coaxial connector, and the socket as an SO239 connector. These are their original military part numbers

These RF coaxial connectors have a threaded coupling, and this prevents them from being removed accidentally. It also enables them to be tightened sufficiently to enable a good low resistance connection to be made between the two halves. It is also useful to note that the center conductor jack on the SO-239 will also accept a banana plug. This can be useful for some test applications where access is required.

Description Of Type1 To Type12:

Type1: UHF Male Plug RF Coax Connector Crimp for RG316 RG174 Cable Straight

Type2: UHF Male Plug RF Coax Connector Crimp for RG58 RG142 Cable Straight

Type3: UHF Male Plug RF Coax Connector Crimp for R8 RG213 LMR400 Cable Straight

Type4: UHF Male Plug RF Coax Connector Clamp for R8 RG213 LMR400 Cable Straight

Type5: UHF Female Jack RF Coax Connector Crimp for RG316 RG174 Cable Straight

Type6: UHF Female Jack RF Coax Connector Crimp for RG58 RG142 Cable Straight

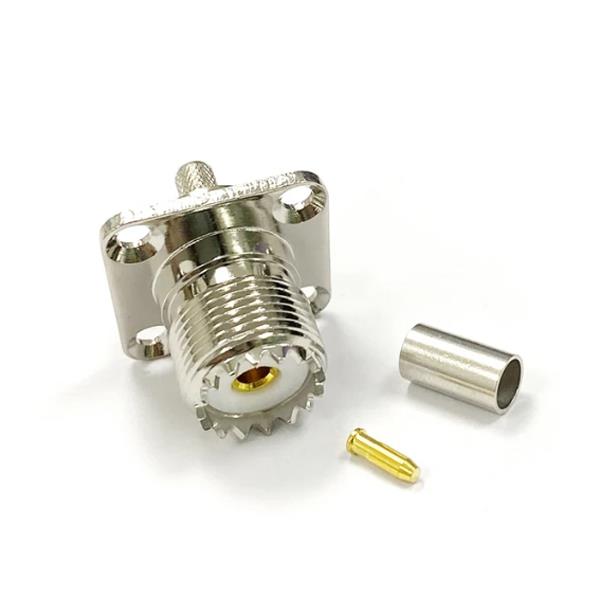

Type7: UHF Female Jack 4-Hole Panel Flange RF Connector crimp for RG58 RG142 Cable

Type8: UHF Female Jack 4-Hole Panel Flange RF Connector Clamp for RG58 RG142 Cable

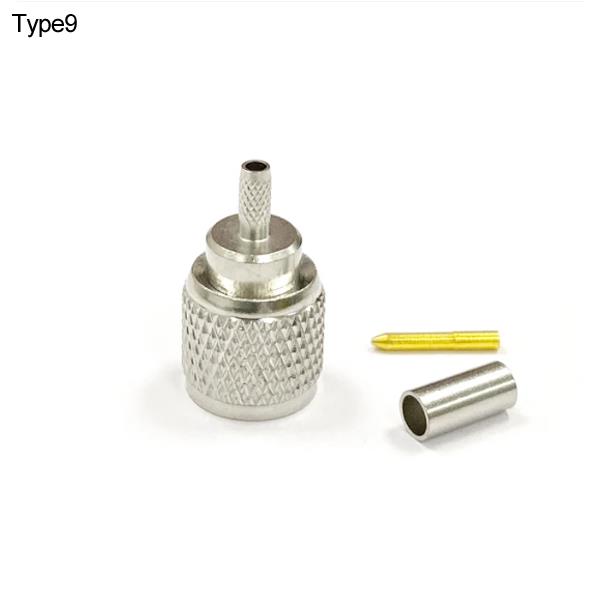

Type9: MINI UHF Male Plug RF Coax Connector Crimp for RG316 RG174 Cable Straight

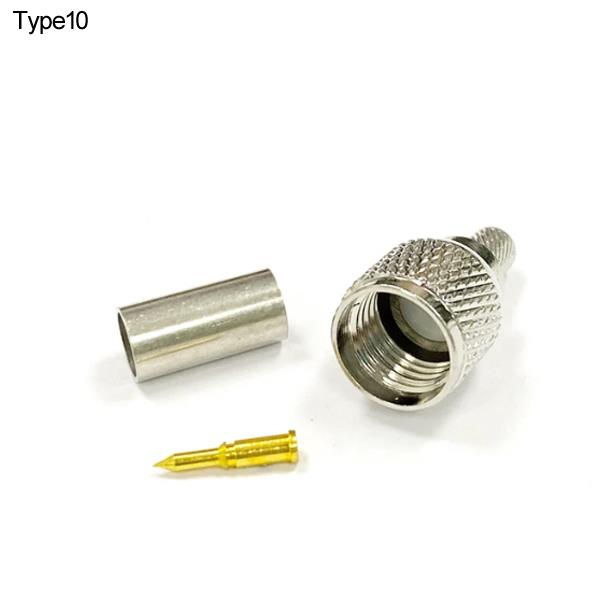

Type10: MINI UHF Male Plug RF Coax Connector Crimp for RG58 RG142 Cable Straight

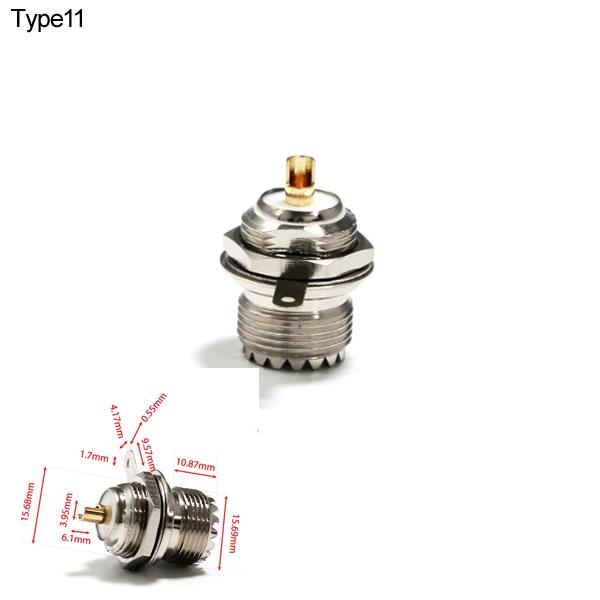

Type11: UHF Female Jack RF Coax Connector with Nut Solder Cup Straight

Type12: UHF SO239 Female Jack RF Coax Connector 4-hole panel mount chassis adapter with solder cup
