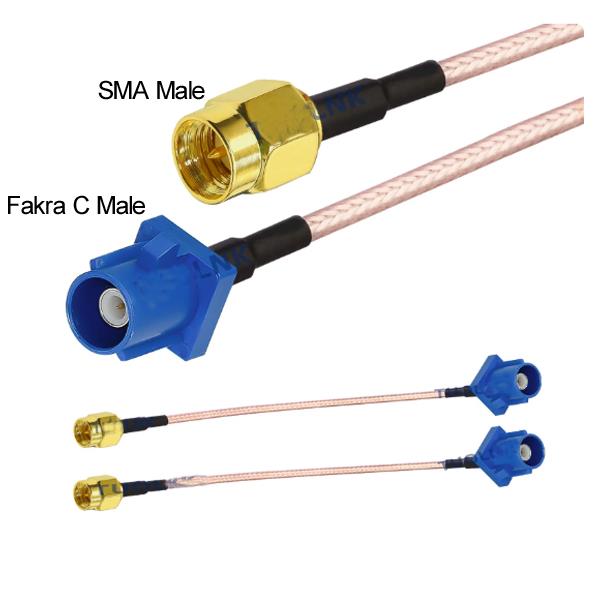

RG316 Coax Cable with SMA Male Female Jack to Fakra C Male Connector

Application:

Widely used in wireless AP/Router and GPS/GSM antenna.

The advantage of RG316 extension cable:

The RG316 coaxial cable is low loss and high frequency. It is light-weight and flexible. It could be bend according to your demand, improve wiring efficiency.

The inner conductor of RG316 coax cable is made of copper clad aluminum to ensure good conductivity and signal transmission.

Specifications of SMA Male to Fakra C Connector coaxial cable:

Connector 1: SMA /RP SMA Male / Female connector (Depends on need)

Connector 2: Fakra C Flange Male / Female Connector (Depends on need)

Cable Type: RG316 coaxial cable

Cable Length: Based on your needs

Impedance: 50 ohm, Low-loss

Frequency Range-MHz: DC-6GHz

V.S.W.R: ≤ 2;

Temperature Range: -55~+155°C (PE Cable -40~+85°C)

Maximum Power: 50W

Max operating frequency (MHz): 3000

Voltage: 1000V r.m.s

Velocity of propagation (10%): 70

Capacitance (pf/m): 96.45

Max operating voltage (KVrms): 1.2
