RG402 Semi Flexible Coaxial Cable with N Type to SMA male/female connector

Application:

This product is widely used in GSM system, GPS navigation system, Wireless communication system, Antennas. Car radio, Test equipment Microwave components, Data transmission, LAN system, Satellite transmission, Aviation equipment etc.

Product Features:

●70%Vp PTFE medium + tin-impregnated copper wire braid Low loss, semi-flexible, excellent shielding performance

● Equivalent to UT-141-FORM

● Alternative PE-SR141FL Flexiform 141

Specifications of N to SMA RG402 RF Coaxial Cable:

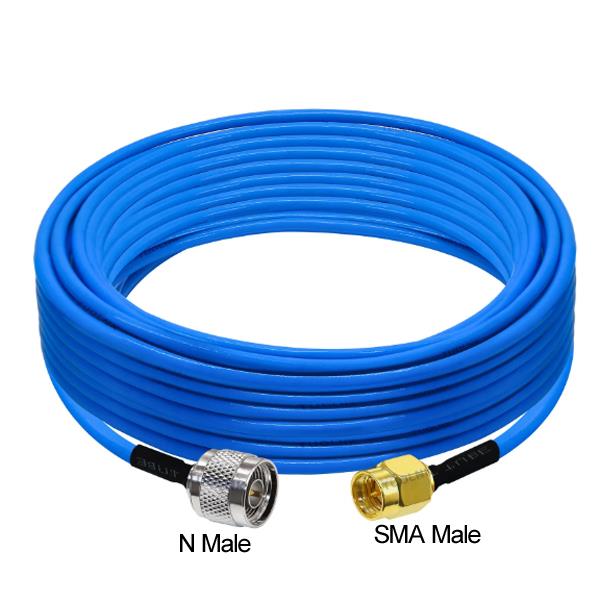

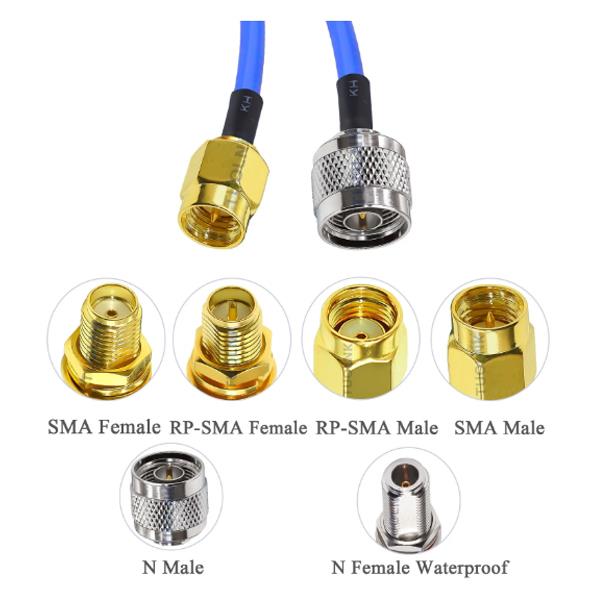

Connector 1: SMA/RP SMA Male ( Gold Plated)

Connector 2: N Male/Female Plug ( Nickel Plated)

Cable Type: RG402 coaxial cable

Length: Based on your needs.

Impedance: 50 ohm, Low-loss

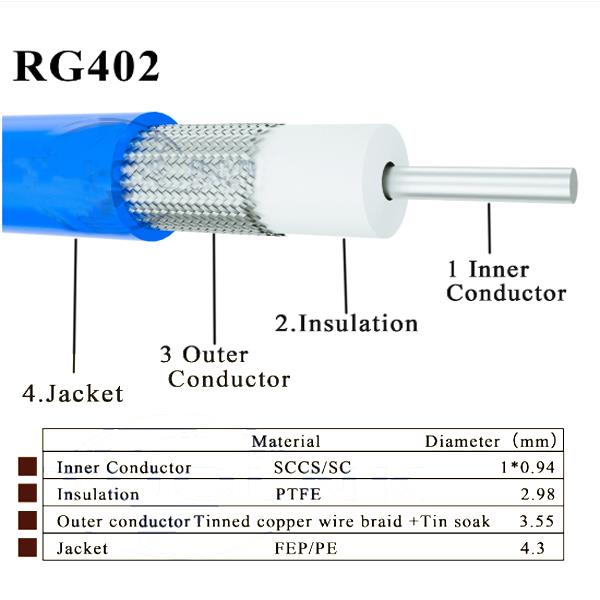

Center conductor: Silver plated copper clad steel or silver plated copper

Dielectric: Extruded PTFE

The outer conductor: Braided tin-impregnated copper wire
