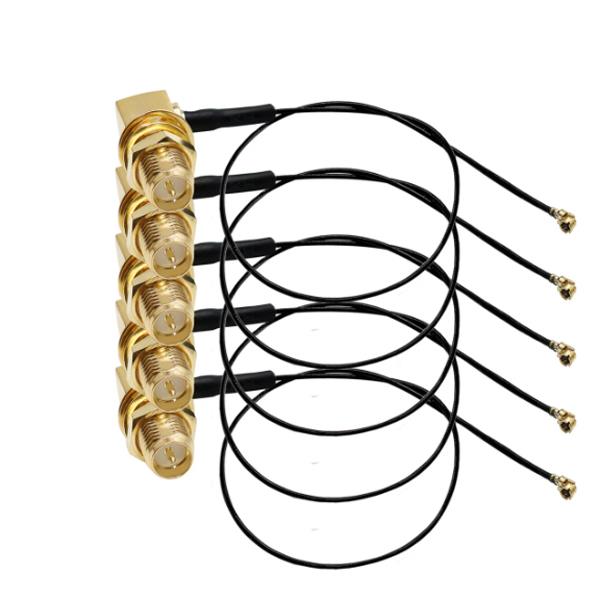

1.13mm Extension Cable U.FL IPEX to RP SMA Female Right Angle Antenna Pigtail Cable

Application:

This product is widely used in Wireless Network Route, transmitter, Wireless Infrastructure, RF device, Bluetooth, PDA, GPS, mobile phones, and electronic measuring instruments.

Specifications of U.fl IPX to RP-SMA Female Right Angle Extension Cable:

RP-SMA Female connector

1.13mm UFL/U.FL/IPX/IPEX connector

Cable Type: 1.13mm mini coaxial cable

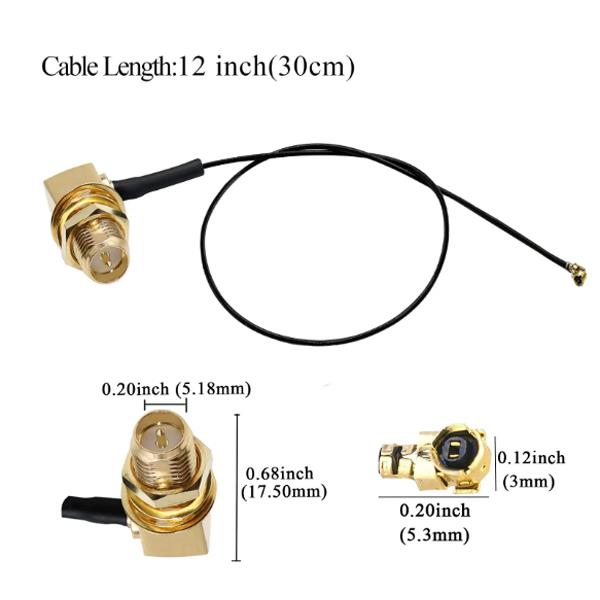

Cable Length: 12 inch (30cm)（Customized）

Conductor Material: pure copper

Frequency: DC-6GHz

Impedance: 50 Ohm

V.S.W.R.: ≤ 1.3

Dielectric Withstanding Voltage: 200V AC/1 Min

Temperature range: -40°C to +80°C
