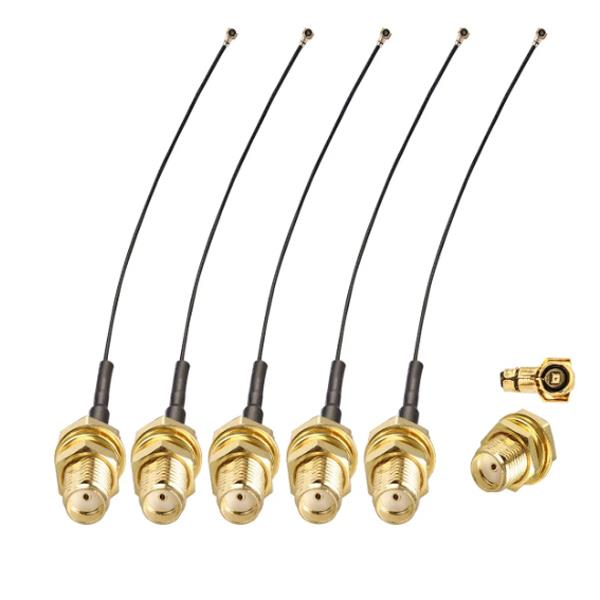

SMA Female to U.FL/IPX Extension Cable /0.81mm IPX SMA Pigtail Coaxial Cable

Application：

This product is widely used in Wireless Network Route, transmitter, Wireless Infrastructure, RF device, Mini PCI, Bluetooth, PDA, GPS, mobile phones, and electronic measuring instruments.

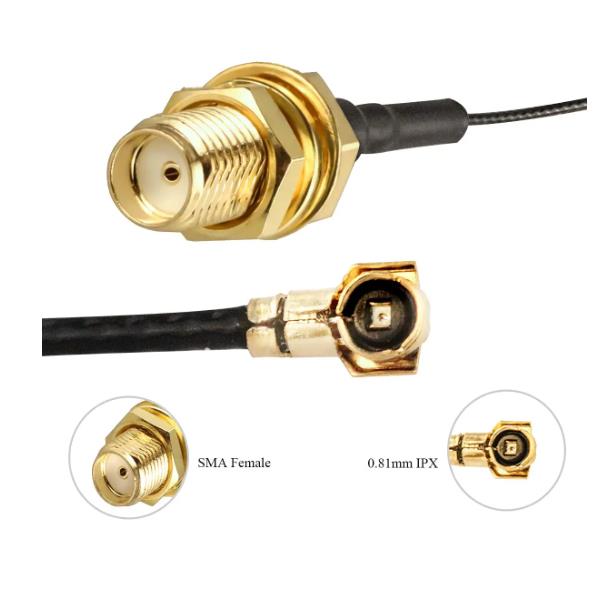

Specifications of U.FL IPX to SMA Female Antenna Cable：

SMA Female connector

UFL/U.FL/IPX/IPEX MHF4 connector

Cable Type: 0.81mm mini-coaxial cable

Length: Based on your needs.

Conductor Material: pure copper

Frequency: DC-6GHz

Impedance: 50 Ohm

V.S.W.R.: ≤ 1.3

Dielectric Withstanding Voltage: 200V AC/1 Min

Temperature range: -40°C to +80°C
