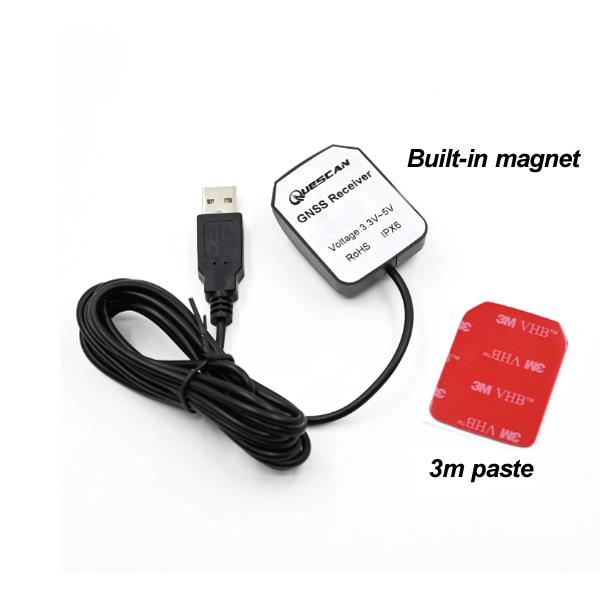

GNSS antenna receiver GPS/GLONASS/Galileo/BeiDou satellite receiver UBX-M8030 NEO-M8N

Application field:

It is widely used in PC navigation, car navigation, sea navigation, ranging, automatic driving travel, fleet management, vehicle tracking, etc.

Highlights:

? Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)

? Industry leading -167 dBm navigation sensitivity

? Industry lowest current consumption

? Superior position accuracy in urban canyons

? Security and integrity protection

? Support for all satellite augmentation systems

Main Technical Specifications:

Parameter		Specifications
Electronic   Components	Chipset	UBX-M8030-KT
	Main module	NEO-M8N
	Oscillator	TCXO
	Flash	4M Flash Memory
GNSS Type	Receiver Type	72-channel   u-blox M8 engine GPS/OZSS LI C/A, GLONASS LIOF BeiDou B1, Galileo EIB/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
	Concurrent GNSS	Up   to throe GNSS systems (GPS/Galileo together Horizontal  with either Beidou or GLONASS)
Accuracy	Horizontal	2.0 CEP
	Time Pulse	30ns
	Velocity	0.05m/s
	Dynamic Heading	0.3deg
Sensitivity	Tracking&Nav.	-167dBm
	Reacquisition	-160dBm
	Cold Start	-148dBm
	Hot Start	-157dBm
Acquisition	Cold Start	26s
	Aided Start	2s
	Hot Start	1s
Operational Limits	Altitude	＜50000m
	Velocity	＜500m/s
	Dynamic	＜4g
Output Data	Data Level	USB
	Protocol	NMEA&UBX
	Baud Rate	4800bps-921600bps
	Update Rate	Single GNSS up to 18 H2 2 Concurrent GNSS up to 10 Hz
Power	Voltage	DC3.3V-5.0V,   Typical:5V
	Current	25mA/5V
Mechanical	Dimensions	L49mm x W37mm x   H16.5mm
	Cable Length	2m
